Body Material: PTFE
Window Material: Quartz Main Parameters
Outer size: Ø62 *20, total thickness after installation of working electrode is about 50mm (working electrode height adjustable)
Window effective: Ø27
Window thickness: 2mm
Working surface distance Window spacing adjustable
Uses and characteristics

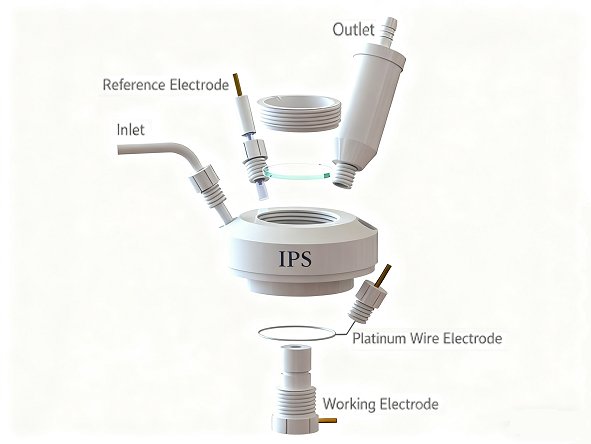

Standard with built-in platinum wire counter electrode, silver chloride reference (if used in non-aqueous system, non-mercury ion reference can also be selected), working electrode is optional (multi-use Ø5 glassy carbon disk electrode) Disk working electrode as current collector is suitable for installation of carbon paper, nickel foam and other user-provided samples, can be customized.
