Body Material: PEEK
Window Material: Sapphire
Main parameters
Distance from working surface to window 3.5mm
Appearance size 90*70* 20mm
Reaction surface of working sample 10* 10mm
Suitable for mounting sample size 15*15 window effective Ø40 mm, sapphire thickness 1mm
The distance from the surface of the working electrode to the lower surface of the window plate is 2.5mm. Standard carbon paper containing platinum counter electrode and silver chloride reference working electrode shall be provided.
The working electrode plate shall be made of self-leakproof material.
Uses and characteristics

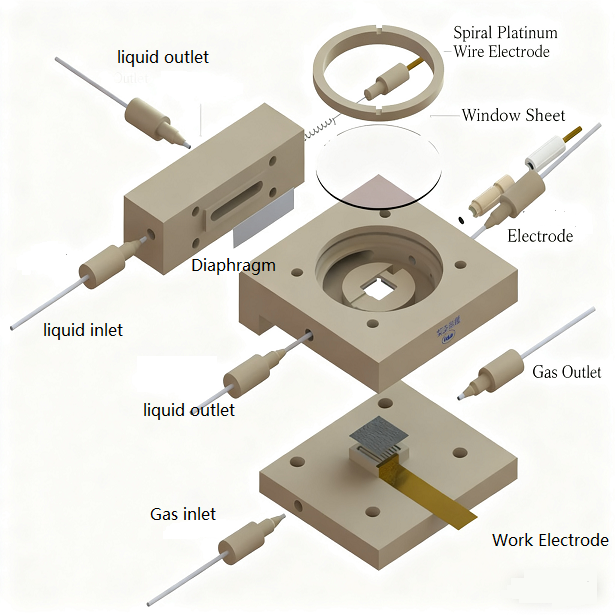

Gas flow channel design, make gas diffusion uniform, electrolyte can circulate flow.
