Lithium battery XRD test cell -Germany IPS

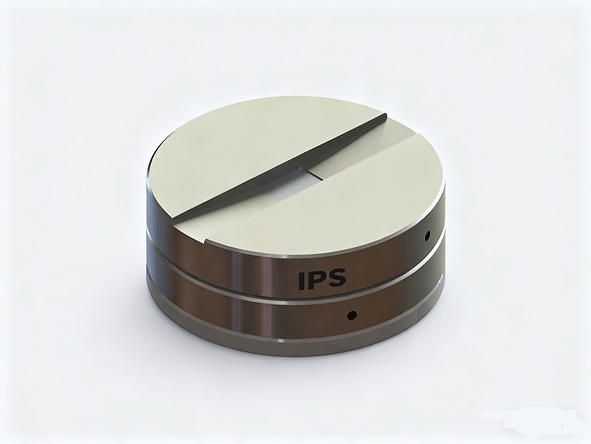

Lithium battery XRD test cell

Lithium battery charge-discharge experiment, while XRD test

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

Material	Device Specifications Ø60 × 20mm, with insulating base The window sheet is Be sheet, specification Ø24 x 0.2mm, effective window 14 x 12mm Sample ≤ Ø16
Uses and features	Normal charge and discharge experiment In-situ XRD measurements of electrode materials for batteries Suitable for Japanese Rigaku X-ray diffractometer Fully sealed device, easy sample loading and unloading, parts can be disassembled and cleaned by the company. Optional Kapton window panels Can be customized lithium empty XRD in-situ cell

Material

Device Specifications Ø60 × 20mm, with insulating base

The window sheet is Be sheet, specification Ø24 x 0.2mm, effective window 14 x 12mm

Sample ≤ Ø16

Uses and features

Normal charge and discharge experiment
In-situ XRD measurements of electrode materials for batteries
Suitable for Japanese Rigaku X-ray diffractometer
Fully sealed device, easy sample loading and unloading, parts can be disassembled and cleaned by the company.
Optional Kapton window panels
Can be customized lithium empty XRD in-situ cell
