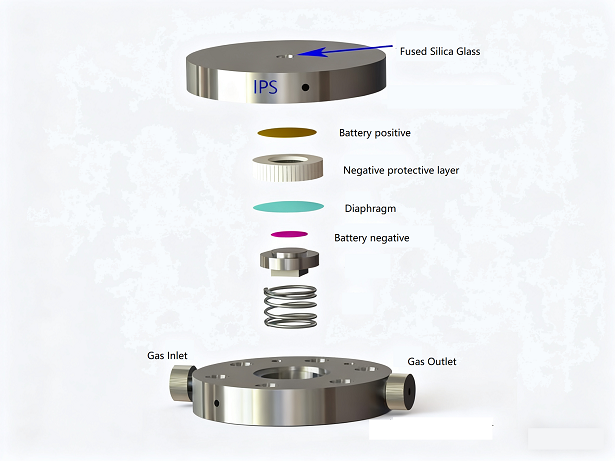

Body material: 316 stainless steel
Sealing parts material: PTFE, fluororubber
Window material: quartz sheet
Main parameters
Outer body size: Ø54 ×19
Window valid: Ø5 (Ø8, Ø10 optional)
Sample distance Window: 2mm
Window thickness: 0.5 mm
Suitable for mounting Sample size: Ø12-Ø16 (Ø5 window), Ø15-Ø16 (Ø8 window) Inner cavity diameter: Ø16
Uses and characteristics
It can be ventilated, can be tested under gas circulation conditions.
Negative diaphragm protection, reduce the loss of the negative electrode, effectively extend the experimental time.
